All Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRP

Shenzhen Zhaoxian Special Optical Fiber Cable Technology Co., Ltd.

All Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRP

  • 1
  • 2
  • 3
  • 4
  • 5

Brand Name : ZXOFC

Model Number : ADSS

Certification : CE,ISO9001,ROSH

Place of Origin : Guangdong, China

MOQ : 2KM

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal,Credit card

Supply Ability : 10000KM per month

Delivery Time : 3-5 days according to the lengths

Packaging Details : Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional

Product name : ADSS Self-supporting fiber optical cable

acket Material : HDPE/AT Sheath

Central Member : FRP

Cores Number : 2~144cores

Contact Now

Outdoor 400m Span G652d G652 655 12 24 48 96 Core Optic Single Mode Adss Non-Metallic Fiber Optical Cable

Description

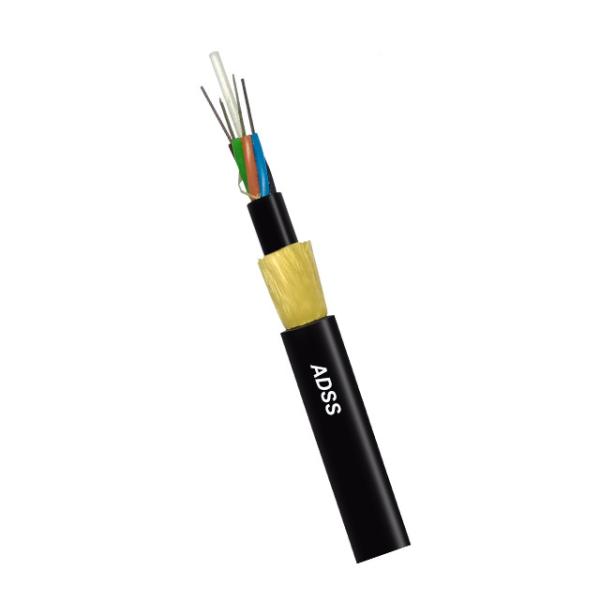

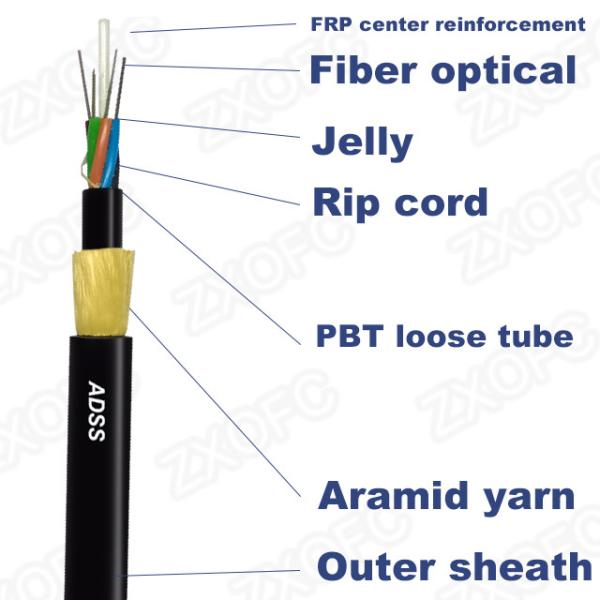

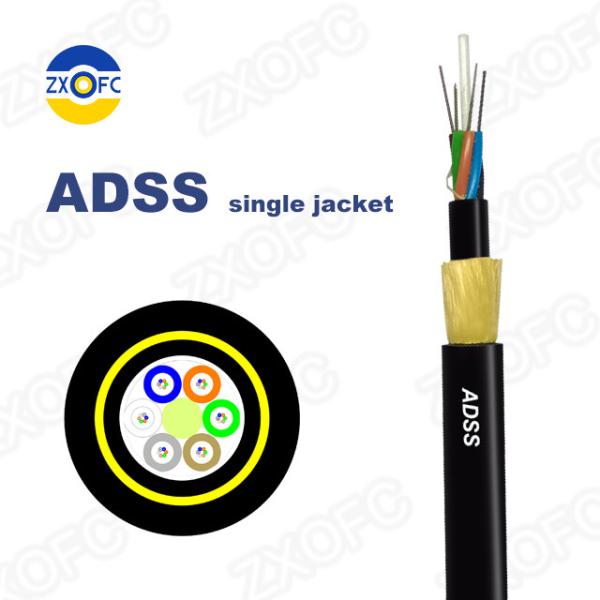

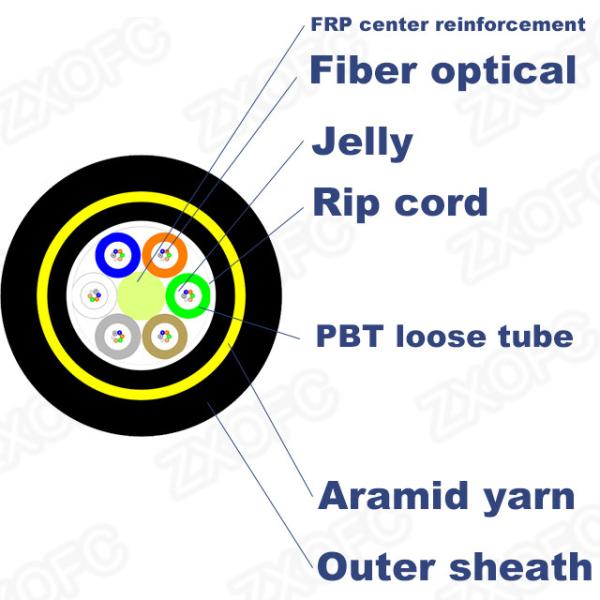

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes

are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a

non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it

is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as

strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Characteristics:

1. Loose tube design

Stable performance and compatibility with all common fiber types

2. Self-supporting

Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

3.Track-resistant &jacket available

For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to

corrosion(AT) outer sheath.

4.Sutable for Aerial self-support installation

Model Number ADSS
Type Coaxial
Number of Conductors >=10
Application Aerial fiber cable
Function Delivery signal light
Certification ADSS pass ISO9001,TIL,CE
Sheath material PE or AT for ass fiber optic cable
Fiber type OS1/OS2,OM1,OM2,OM3,OM4
Length per roll 2km/3km/4km ADSS fiber
Marketing printing
Fiber count 2core to 288 core
Strength member FRP

Optical Fiber Performance

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

All Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRPAll Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRPAll Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRPAll Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRPAll Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRPAll Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRP

All Dielectric Self Supporting Aerial Fiber Cable Double Jacket FRP

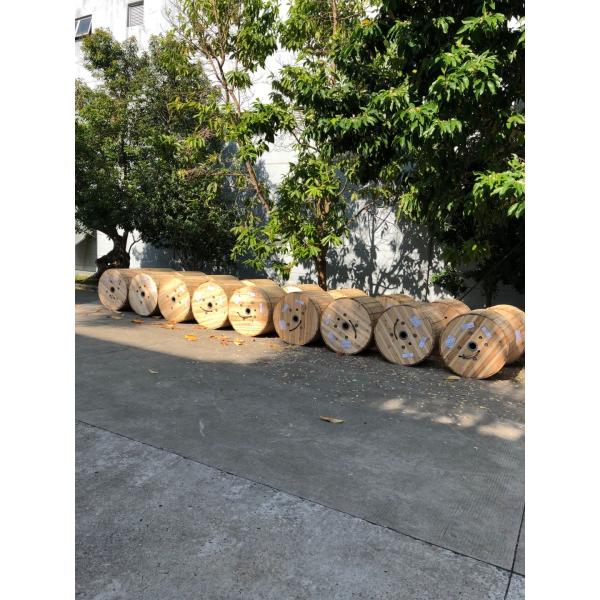

Package & Delivery

Packaging Details:

Carton box,Wooden reel,2Km/drum

Inter packing: wooden reel,plastic reel or paper reel

Outer packing: carton box,pull out box

Delivery Time:

Generally shipped within 3~7 days after the prepayment.


Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;

b. Standard Code(Product Type, Fiber Type,Fiber Count);

c. Year of manufacture: 14 years;

d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1~50 50~100 100~300 ≥300
Est.Time(Days) Within 7 days 5-10 days 7-15 days To be Negotiated!
